Step 1: Lift Vehicle from front lift points (dedicated lift preferred over a floor jack).
Step 2 : Open Hood.
Step 3: Remove front wheels.
Step 4: Remove “3” fender liner plastic clips from both right & left wheels arches, going into bumper. Clips x6
Step 5: Remove “3” 10mm bolts per side (right/left) fender, attached to base of fender liner.
Step 6: Pull fender liner back from bumper, remove “3” T30 bolts. (refer to picture)
Step 7: Remove “24” T30 bolts under bumper retaining bumper to skid guards & supports, as well as 4 screws across the top of the bumper (located under Hood). (refer to picture above)

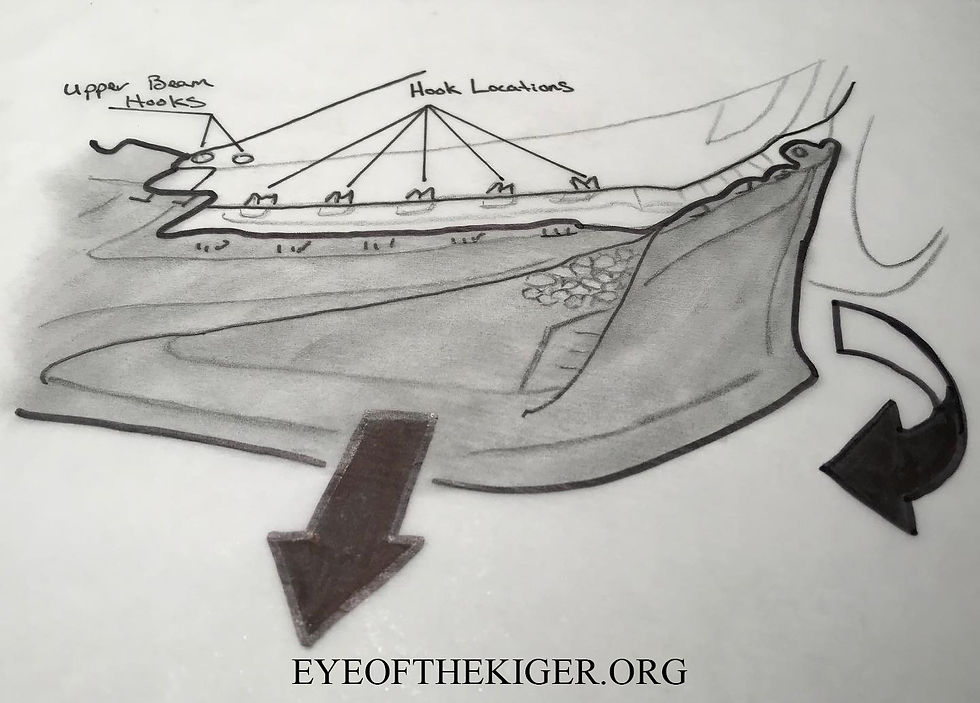

Step 8: Pull out the front bumper at the wheel arch area to release it from the hooks on the upper beam. (refer to picture below)
Step 8: With help of a assistant, while pulling the front bumper away from the upper beam, release the bumper from the hooks on the upper beam. (refer to picture below)
Step 10: With the bumper pulled a few inches from the vehicle, disconnect the sensors from the bumper.
Step 11: With everything removed, the bumper can now be safely removed and set aside.
